JavaTM 2 Platform
Std. Ed. v1.4.0

javax.swing.text
Interface Document

All Known Subinterfaces:
StyledDocument
All Known Implementing Classes:
AbstractDocument, DefaultStyledDocument

public interface Document

The Document is a container for text that serves as the model for swing text components. The goal for this interface is to scale from very simple needs (a plain text textfield) to complex needs (an HTML or XML document, for example).

Content

At the simplest level, text can be modeled as a linear sequence of characters. To support internationalization, the Swing text model uses unicode characters. The sequence of characters displayed in a text component is generally referred to as the component's content.

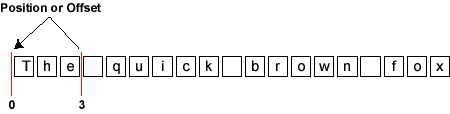

To refer to locations within the sequence, the coordinates used are the location between two characters. As the diagram below shows, a location in a text document can be referred to as a position, or an offset. This position is zero-based.

In the example, if the content of a document is the sequence "The quick brown fox," as shown in the preceding diagram, the location just before the word "The" is 0, and the location after the word "The" and before the whitespace that follows it is 3. The entire sequence of characters in the sequence "The" is called a range.

The following methods give access to the character data that makes up the content.

Structure

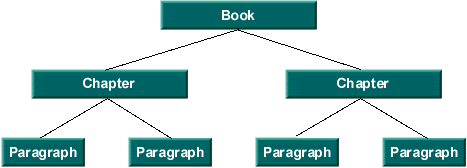

Text is rarely represented simply as featureless content. Rather, text typically has some sort of structure associated with it. Exactly what structure is modeled is up to a particular Document implementation. It might be as simple as no structure (i.e. a simple text field), or it might be something like diagram below.

The unit of structure (i.e. a node of the tree) is referred to by the Element interface. Each Element can be tagged with a set of attributes. These attributes (name/value pairs) are defined by the AttributeSet interface.

The following methods give access to the document structure.

Mutations

All documents need to be able to add and remove simple text. Typically, text is inserted and removed via gestures from a keyboard or a mouse. What effect the insertion or removal has upon the document structure is entirely up to the implementation of the document.

The following methods are related to mutation of the document content:

Notification

Mutations to the Document must be communicated to interested observers. The notification of change follows the event model guidelines that are specified for JavaBeans. In the JavaBeans event model, once an event notification is dispatched, all listeners must be notified before any further mutations occur to the source of the event. Further, order of delivery is not guaranteed.

Notification is provided as two separate events, DocumentEvent, and UndoableEditEvent. If a mutation is made to a Document through its api, a DocumentEvent will be sent to all of the registered DocumentListeners. If the Document implementation supports undo/redo capabilities, an UndoableEditEvent will be sent to all of the registered UndoableEditListeners. If an undoable edit is undone, a DocumentEvent should be fired from the Document to indicate it has changed again. In this case however, there should be no UndoableEditEvent generated since that edit is actually the source of the change rather than a mutation to the Document made through it's api.

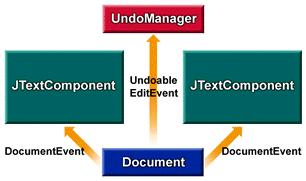

Referring to the above diagram, suppose that the component shown on the left mutates the document object represented by the blue rectangle. The document responds by dispatching a DocumentEvent to both component views and sends an UndoableEditEvent to the listening logic, which maintains a history buffer.

Now suppose that the component shown on the right mutates the same document. Again, the document dispatches a DocumentEvent to both component views and sends an UndoableEditEvent to the listening logic that is maintaining the history buffer.

If the history buffer is then rolled back (i.e. the last UndoableEdit undone), a DocumentEvent is sent to both views, causing both of them to reflect the undone mutation to the document (that is, the removal of the right component's mutation). If the history buffer again rolls back another change, another DocumentEvent is sent to both views, causing them to reflect the undone mutation to the document -- that is, the removal of the left component's mutation.

The methods related to observing mutations to the document are:

Properties

Document implementations will generally have some set of properties associated with them at runtime. Two well known properties are the StreamDescriptionProperty, which can be used to describe where the Document came from, and the TitleProperty, which can be used to name the Document. The methods related to the properties are:

For more information on the Document class, see The Swing Connection and most particularly the article, The Element Interface.

See Also:
DocumentEvent, DocumentListener, UndoableEditEvent, UndoableEditListener, Element, Position, AttributeSet

Field Summary
static String StreamDescriptionProperty
          The property name for the description of the stream used to initialize the document.
static String TitleProperty
          The property name for the title of the document, if there is one.

Method Summary
 void addDocumentListener(DocumentListener listener)
          Registers the given observer to begin receiving notifications when changes are made to the document.
 void addUndoableEditListener(UndoableEditListener listener)
          Registers the given observer to begin receiving notifications when undoable edits are made to the document.
 Position createPosition(int offs)
          This method allows an application to mark a place in a sequence of character content.
 Element getDefaultRootElement()
          Returns the root element that views should be based upon, unless some other mechanism for assigning views to element structures is provided.
 Position getEndPosition()
          Returns a position that represents the end of the document.
 int getLength()
          Returns number of characters of content currently in the document.
 Object getProperty(Object key)
          Gets the properties associated with the document.
 Element[] getRootElements()
          Returns all of the root elements that are defined.
 Position getStartPosition()
          Returns a position that represents the start of the document.
 String getText(int offset, int length)
          Fetches the text contained within the given portion of the document.
 void getText(int offset, int length, Segment txt)
          Fetches the text contained within the given portion of the document.
 void insertString(int offset, String str, AttributeSet a)
          Inserts a string of content.
 void putProperty(Object key, Object value)
          Associates a property with the document.
 void remove(int offs, int len)
          Removes a portion of the content of the document.
 void removeDocumentListener(DocumentListener listener)
          Unregisters the given observer from the notification list so it will no longer receive change updates.
 void removeUndoableEditListener(UndoableEditListener listener)
          Unregisters the given observer from the notification list so it will no longer receive updates.
 void render(Runnable r)
          This allows the model to be safely rendered in the presence of currency, if the model supports being updated asynchronously.


Field Detail

StreamDescriptionProperty

public static final String StreamDescriptionProperty
The property name for the description of the stream used to initialize the document. This should be used if the document was initialized from a stream and anything is known about the stream.

See Also:
Constant Field Values

TitleProperty

public static final String TitleProperty
The property name for the title of the document, if there is one.

See Also:
Constant Field Values
Method Detail

getLength

public int getLength()
Returns number of characters of content currently in the document.

Returns:
number of characters >= 0

addDocumentListener

public void addDocumentListener(DocumentListener listener)
Registers the given observer to begin receiving notifications when changes are made to the document.

Parameters:
listener - the observer to register
See Also:
removeDocumentListener(javax.swing.event.DocumentListener)

removeDocumentListener

public void removeDocumentListener(DocumentListener listener)
Unregisters the given observer from the notification list so it will no longer receive change updates.

Parameters:
listener - the observer to register
See Also:
addDocumentListener(javax.swing.event.DocumentListener)

addUndoableEditListener

public void addUndoableEditListener(UndoableEditListener listener)
Registers the given observer to begin receiving notifications when undoable edits are made to the document.

Parameters:
listener - the observer to register
See Also:
UndoableEditEvent

removeUndoableEditListener

public void removeUndoableEditListener(UndoableEditListener listener)
Unregisters the given observer from the notification list so it will no longer receive updates.

Parameters:
listener - the observer to register
See Also:
UndoableEditEvent

getProperty

public Object getProperty(Object key)
Gets the properties associated with the document.

Parameters:
key - a non-null property key
Returns:
the properties
See Also:
putProperty(Object, Object)

putProperty

public void putProperty(Object key,
                        Object value)
Associates a property with the document. Two standard property keys provided are: StreamDescriptionProperty and TitleProperty. Other properties, such as author, may also be defined.

Parameters:
key - the non-null property key
value - the property value
See Also:
getProperty(Object)

remove

public void remove(int offs,
                   int len)
            throws BadLocationException

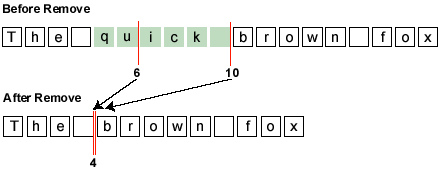

Removes a portion of the content of the document. This will cause a DocumentEvent of type DocumentEvent.EventType.REMOVE to be sent to the registered DocumentListeners, unless an exception is thrown. The notification will be sent to the listeners by calling the removeUpdate method on the DocumentListeners.

To ensure reasonable behavior in the face of concurrency, the event is dispatched after the mutation has occurred. This means that by the time a notification of removal is dispatched, the document has already been updated and any marks created by createPosition have already changed. For a removal, the end of the removal range is collapsed down to the start of the range, and any marks in the removal range are collapsed down to the start of the range.

If the Document structure changed as result of the removal, the details of what Elements were inserted and removed in response to the change will also be contained in the generated DocumentEvent. It is up to the implementation of a Document to decide how the structure should change in response to a remove.

If the Document supports undo/redo, an UndoableEditEvent will also be generated.

Parameters:
offs - the offset from the beginning >= 0
len - the number of characters to remove >= 0
Throws:
BadLocationException - some portion of the removal range was not a valid part of the document. The location in the exception is the first bad position encountered.
See Also:
DocumentEvent, DocumentListener, UndoableEditEvent, UndoableEditListener

insertString

public void insertString(int offset,
                         String str,
                         AttributeSet a)
                  throws BadLocationException

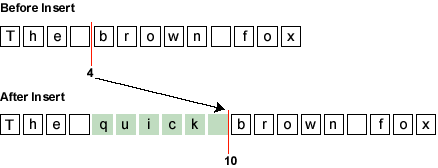

Inserts a string of content. This will cause a DocumentEvent of type DocumentEvent.EventType.INSERT to be sent to the registered DocumentListers, unless an exception is thrown. The DocumentEvent will be delivered by calling the insertUpdate method on the DocumentListener. The offset and length of the generated DocumentEvent will indicate what change was actually made to the Document.

If the Document structure changed as result of the insertion, the details of what Elements were inserted and removed in response to the change will also be contained in the generated DocumentEvent. It is up to the implementation of a Document to decide how the structure should change in response to an insertion.

If the Document supports undo/redo, an UndoableEditEvent will also be generated.

Parameters:
offset - the offset into the document to insert the content >= 0. All positions that track change at or after the given location will move.
str - the string to insert
a - the attributes to associate with the inserted content. This may be null if there are no attributes.
Throws:
BadLocationException - the given insert position is not a valid position within the document
See Also:
DocumentEvent, DocumentListener, UndoableEditEvent, UndoableEditListener

getText

public String getText(int offset,
                      int length)
               throws BadLocationException
Fetches the text contained within the given portion of the document.

Parameters:
offset - the offset into the document representing the desired start of the text >= 0
length - the length of the desired string >= 0
Returns:
the text, in a String of length >= 0
Throws:
BadLocationException - some portion of the given range was not a valid part of the document. The location in the exception is the first bad position encountered.

getText

public void getText(int offset,
                    int length,
                    Segment txt)
             throws BadLocationException
Fetches the text contained within the given portion of the document.

If the partialReturn property on the txt parameter is false, the data returned in the Segment will be the entire length requested and may or may not be a copy depending upon how the data was stored. If the partialReturn property is true, only the amount of text that can be returned without creating a copy is returned. Using partial returns will give better performance for situations where large parts of the document are being scanned. The following is an example of using the partial return to access the entire document:



   int nleft = doc.getDocumentLength();
   Segment text = new Segment();
   int offs = 0;
   text.setPartialReturn(true);
   while (nleft > 0) {
       doc.getText(offs, nleft, text);
       // do someting with text
       nleft -= text.count;
       offs += text.count;
   }



Parameters:
offset - the offset into the document representing the desired start of the text >= 0
length - the length of the desired string >= 0
txt - the Segment object to return the text in
Throws:
BadLocationException - Some portion of the given range was not a valid part of the document. The location in the exception is the first bad position encountered.

getStartPosition

public Position getStartPosition()
Returns a position that represents the start of the document. The position returned can be counted on to track change and stay located at the beginning of the document.

Returns:
the position

getEndPosition

public Position getEndPosition()
Returns a position that represents the end of the document. The position returned can be counted on to track change and stay located at the end of the document.

Returns:
the position

createPosition

public Position createPosition(int offs)
                        throws BadLocationException
This method allows an application to mark a place in a sequence of character content. This mark can then be used to tracks change as insertions and removals are made in the content. The policy is that insertions always occur prior to the current position (the most common case) unless the insertion location is zero, in which case the insertion is forced to a position that follows the original position.

Parameters:
offs - the offset from the start of the document >= 0
Returns:
the position
Throws:
BadLocationException - if the given position does not represent a valid location in the associated document

getRootElements

public Element[] getRootElements()
Returns all of the root elements that are defined.

Typically there will be only one document structure, but the interface supports building an arbitrary number of structural projections over the text data. The document can have multiple root elements to support multiple document structures. Some examples might be:

Returns:
the root element

getDefaultRootElement

public Element getDefaultRootElement()
Returns the root element that views should be based upon, unless some other mechanism for assigning views to element structures is provided.

Returns:
the root element

render

public void render(Runnable r)
This allows the model to be safely rendered in the presence of currency, if the model supports being updated asynchronously. The given runnable will be executed in a way that allows it to safely read the model with no changes while the runnable is being executed. The runnable itself may not make any mutations.

Parameters:
r - a Runnable used to render the model
